High Frequency Quickly-flx External Vibrators
  • High Frequency Quickly-flx External Vibrators
  • High Frequency Quickly-flx External Vibrators
  • High Frequency Quickly-flx External Vibrators
  • High Frequency Quickly-flx External Vibrators

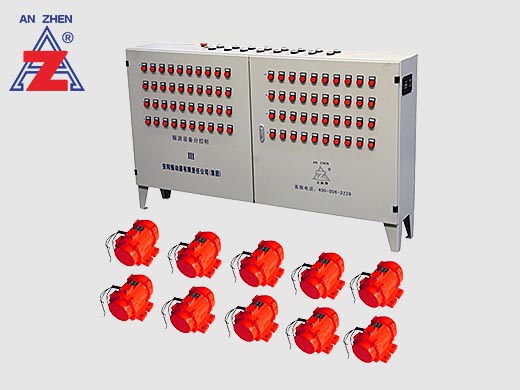

High Frequency Quickly-flx External Vibrators

  • Type:

    GZ150、GZ100、DBP150-22、DBP100-22(The special order is available on the request)

  • Product Application:

    Mainly used in building, coal, mining, light industry, chemical, cement, railway, port industry .They can also be used as source of vibration equipment.

  • Contact:

    Tel:+86 0372-2588682; mobile:+86 15716303576

Share with:

Product Application

High frequency electric vibrator are mainly applied to some big precast concrete components especially T beam sand-beams which are used in roads railways bridges tunnels etc.

Features

  • 01

    Strong vibration force,adjustable frequency,light weight,high efficiency.

  • 02

    Long service life, four times more than ordinary vibrator,reduce the maintenance cost and construction cost.

Technical Parameter

Type In put(Ph/v/Hz/A) Power(KW) Vibration freq(Hz)

 Exciting force(N)


 Amplitude(mm)


Total weight(kg)

GZ150 3/250/150 1.5 150 12 0.8 22
GZ100 3/380/80-120 2 80-120 80-120 1.0-1.5 29
Type In put(Ph/v/Hz/A) Power(KW) output(Ph/v/Hz/A) remarks
DBP150-22 3/380/50 Power(KW) 3/250/150 27 way preset control
DBP100-22 3/380/50 22 3/380/80-120 Multiple preset control
Type Overall sizemm In put(Ph/v/Hz/A) Power(KW) Vibration freq(Hz)
Exciting force(N)
Amplitude(mm)
Total weight(kg)
GZF150

Φ170*1260

3/150/250 1.5 150 12 0.8 20
Type Overall sizemm Input(Ph/v/Hz/A) OutputKw PowerKw Werghtkg
DBP150-15 560*500*800 3/50/380 3/150/250 15 58
