Gasoline Tamping Rammer
  • Gasoline Tamping Rammer
  • Gasoline Tamping Rammer
  • Gasoline Tamping Rammer
  • Gasoline Tamping Rammer

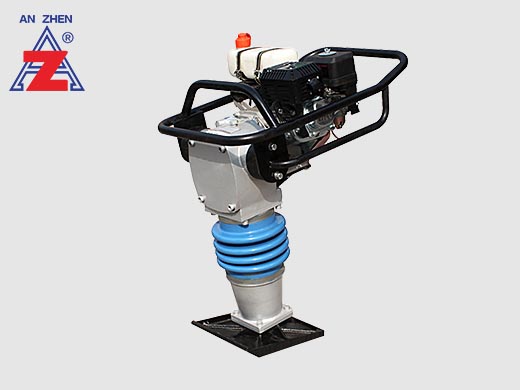

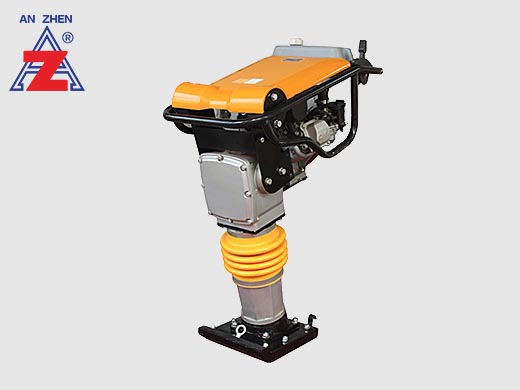

Gasoline Tamping Rammer

  • Type:

    HCR80、HCR80A、HCR80C、HCR90、HCR90A

  • (The special order is available on the request):

    Product Application

  • Widely used in road construction, bridge foundation, building construction, the dam reservoir, reservoir compaction construction of farmland, especially suitable for indoor ground, courtyard and grooves and other narrow construction site.:

    Contact

Share with:

Description

Features

  • 01

    Creative oil-way design,fuel no need to lay down machine.

  • 02

    Adopt eccentric design of the crankcase with national patent.High efficiency,perfect appearance,good operation performance.

  • 03

    Equipped with Honda GX160 gasoline engine.

Technical Parameter

Type Weight Output power Plate size Advancing speed Volume of fule tank Leap height Leap height Impact energy Impact frequency Lubricant oil Packing size
HCR80 80KG 5.5hp/6.5hp 275x330mm 10-15m/min 2.8L 45-65mm 70N.m 400-600times/min above90# 710x430x1050mm
HCR80C 80KG 5.5hp/6.5hp 275x330mm 10-15m/min 2.8L 45-65mm 70N.m 400-600times/min above90# 710x430x1050mm
HCR80A 75KG 5.5hp 275x330mm 10-15m/min 2.8L 45-65mm 70N.m 400-600times/min above90# 710x430x1050mm
