VBE Series Three-phase Asynchronous Vibratory Motor
  • VBE Series Three-phase Asynchronous Vibratory Motor
  • VBE Series Three-phase Asynchronous Vibratory Motor
  • VBE Series Three-phase Asynchronous Vibratory Motor
  • VBE Series Three-phase Asynchronous Vibratory Motor

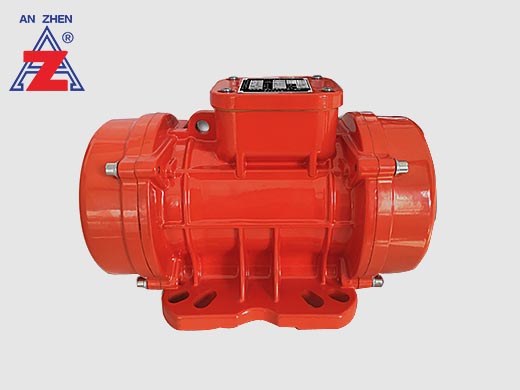

VBE Series Three-phase Asynchronous Vibratory Motor

  • Type:

    VBE-60/3、VBE-100/3、VBE-200/3、VBE-300/3(The special order is available on the request)

  • Product Application:

    Mainly used in building, coal, mining, light industry, chemical, cement, railway, port industry .They can also be used as source of vibration equipment.

  • Contact:

    Tel:+86 0372-2588682; mobile:+86 15716303576

Share with:

Product Application

Mainly used in building, coal, mining, light industry, chemical, cement, railway, port industry .They can also be used as source of vibration equipment.

Features

  • 01

    Light weight, strong vibration force.

  • 02

    Low mechanical noise and long service life.

  • 03

    Strong body design,protect the base when using it.

  • 04

    Easy mass adjustment ,can control the vibration force.

  • 05

    The machine painted with anti-rust paint.

Technical Parameter

Type Exciting force(kN)
Dut Insulating grade Protective category Vibration force power(KW) Voltage
VBE-60/3 0.7 continua(S1) F grade IP65 0.03 380/220
VBE-100/3 1 0.04
VBE-200/3 2 0.09
VBE-300/3 3 0.15
